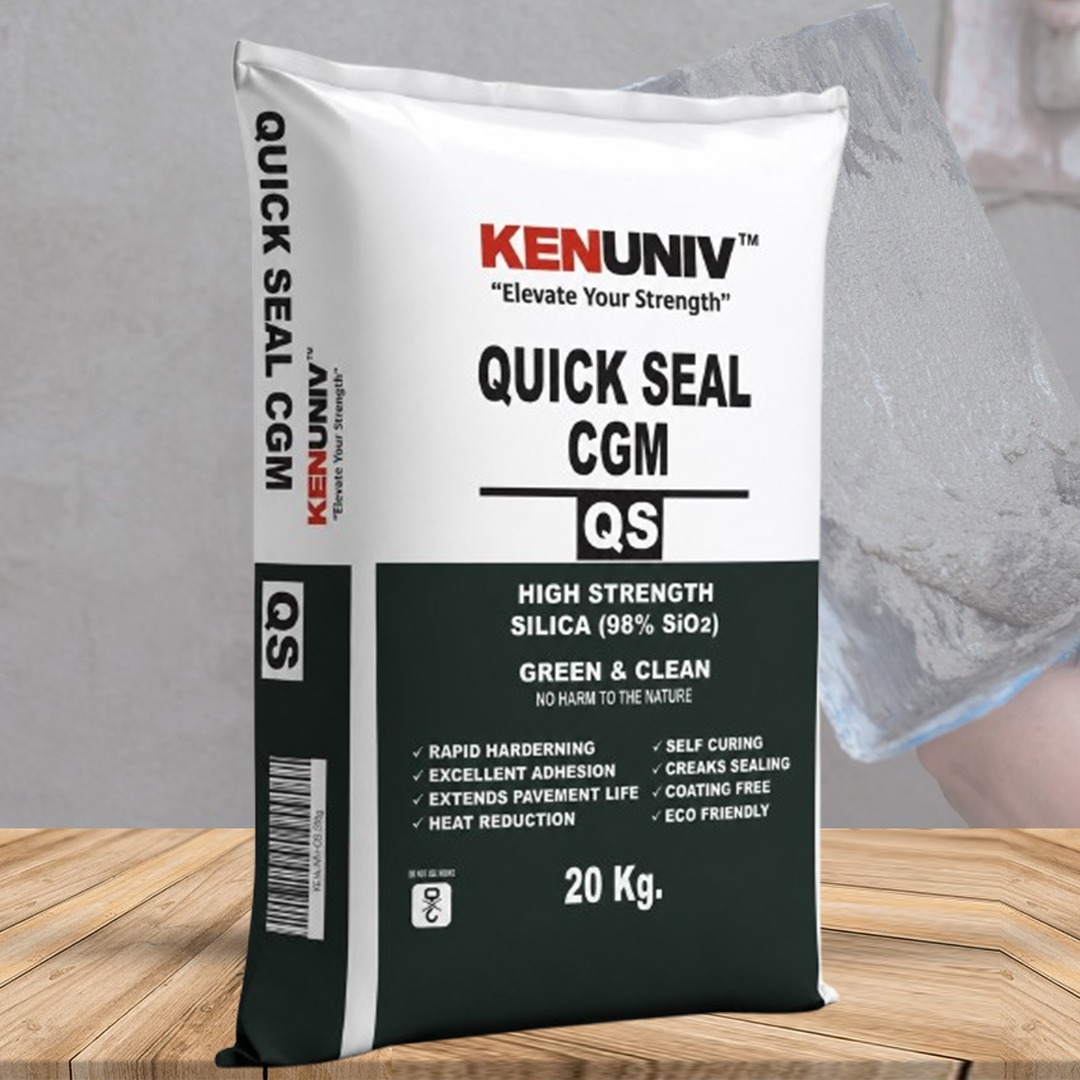

Description of KENUNIV QS-CGM

KENUNIVQS-CGM Quick seal is a specially formulated Cementitious Grout Material designed for sealing, densifying, and strengthening flexible and rigid wearing courses. The product penetrates surface voids, micro-cracks, hungry surfaces and interconnected pores to form a dense, impermeable, and durable layer.

The treated surface becomes resistant to water ingress, moisture penetration, fuel spillage, and traffic-induced stresses, thereby extending pavement service life and reducing maintenance costs.

• IS 516 : 2018 (P2 / S1)
• EN 12390 ( Testing Hardened Concrete )

KENUNIV–QS CGM Quick Sealsuitable for various applications, including:

• Filling Surface Voids / Hungry surface Used where high voids exist in asphalt/bituminous layers
• Crack and Joint Sealing Applied over concrete wearing courses with voids or gaps
• Pavement Rehabilitation and RepairRestores worn and porous pavement surfaces.
• Edges of bituminous/concrete layers are covered with materials like fly ash to prevent slurry outflow
• Skid resistance rooming (manual/mechanical) creates texture for better penetration and commonly applied in highway construction, overlays, and maintenance works
• Pavement Slab Reinforcement Fills gaps between pavement slabs and joints. Improves load transfer and reduces slab movement
• Retaining Walls & Slope Protection Reinforces retaining walls, bridge approaches, hill roads, and high embankments.Minimizes erosion and enhances long-term stability

• Excellent adhesion, even on damp or moist surfaces.
• Seals interconnected surface voids and micro-cracks.
• Improves strength and durability with age.
• Creates a hard, dense, and impermeable surface.
• No additional protective coating required.
• Enhances waterproofing characteristics of the pavement surface.
• Environmentally friendly and sustainable solution.
• No post-curing requirement under normal conditions.
• Reflects solar radiation and helps reduce pavement surface temperature.
• Extends pavement service life.
• Cost-effective alternative to conventional rehabilitation techniques.
• Reduces water-induced pavement deterioration.

• Advanced Particle Packing Technology Binding of individual particles for superior cohesion.
• Microfine silica particles for reduced permeability and enhanced strength.
• Rapid Hardening Technology Early strength development.Faster opening to traffic.
• Advanced Bonding System Strong bonding with surrounding asphalt and concrete substrates.
• Non-Shrink Technology minimizes shrinkage cracks.Improves dimensional stability.
• Self-Compacting Properties excellent flowability.Easy penetration into surface voids and micro-cracks.
• Self-Curing Mechanism controls heat generation during hydration.
• Flexural Resistance Technology better resistance against traffic loading and vibration.
• Pure Silica Reinforcement multiple grades of high-purity silica for enhanced durability and abrasion resistance.

Initial Setting Time	4 – 5 Hours
Final Setting Time	6 – 10 Hours
Characteristic Compressive Strength @ 28 Days	≥ 40 N/mm²
Flexural Strength @ 28 Days	≥ 3.5 N/mm²
Fluidity (ASTM C939)	20 – 50 Seconds
Voids in CGM @ 7 Days	2 – 3 %
Full Depth Grouting Efficiency	97 – 100 %
Compressive Strength @ 28 Days	> 40 N/mm²
Resilient Modulus @ 28 Days (35°C)	> 10,000 N/mm²
Indirect Tensile Strength (ITS) @ 28 Days, 35°C	≥ 1.0 N/mm²
Marshall Stability @ 28 Days, 60°C	≥ 60 kN
Retained ITS Strength @ 28 Days	≥ 97 %
Recommended CGM Layer Thickness	3 mm (Traffic ≤ 5 MSA) 5 mm (Traffic > 5 MSA)
Opening to Traffic	4 – 5 Hours
Skid Resistance	> 50 BPN (Wet) > 60 BPN (Dry)
Permeability	0.00 m/sec (Impermeable)

Note: For pavement design purposes, a Resilient Modulus value of 5,000 N/mm² may be adopted.

It has a shelf life of 04 months, Store at cool and dry place.

20 Kg Bag Size

• Avoid direct application to gypsum plaster or boards, fiber cement boards, drywall partitions, plywood, chipboard, particleboard, decorative laminates, resilient flooring, metal, plastic, deformable surfaces, or surfaces subject to vibrations.
• Not suitable for fixing artificial, nano, engineered stone, composites, or metal tiles.

Surface Preparation
Proper surface preparation is essential for achieving optimum bond strength and durability.

• Remove all loose materials, dust, dirt, oil, grease, laitance, standing water, and other bond-inhibiting contaminants from the pothole or repair area.
• Cleaning may be carried out using suitable methods such as: Wire brushing / Water jetting / Air blowing / Sweeping or mopping.
• Ensure that the repair area is structurally sound before application.

• Add the required quantity of clean water to the KENUNIV-QS Quick Seal material. For asphalt and concrete wearing courses, the water dosage may be adjusted according to:.
• Surface condition, Severity of damage , Ambient temperature, Required workability.
• Mix mechanically for 2–3 minutes until a homogeneous, lump-free paste grout is obtained.

Mixing of KENUNIV-QS CGM

• Pour KENUNIV -QS CGMgrout slurry onto the prepared bituminous or concrete surface.
• Spread uniformly using suitable manual or mechanical methods. Application may be carried out through:
  o Sweeping
  o Squeezing
  o Rubber squeegee spreading
  o Mechanical grouting equipment

• The grout should freely penetrate into the surface voids under gravity.
• Where necessary, the edges of the treatment area may be sealed with suitable materials such as fly ash to prevent slurry outflow.
• To improve surface texture and skid resistance, the treated surface may be mechanically or manually broom-finished.

• KENUNIV-QS Quick SEAL contains a silica-based reactive compound that promotes rapid strength development and fast setting.
• No conventional water curing is required.
• Allow the repaired area to settle and gain initial strength for approximately 4 to 6 hours.

• Use clean water and clean aggregates only.
• Do not apply during heavy rainfall or when water is continuously flowing through the repair area.
• Mix only the quantity that can be placed within the recommended working time of 30 minute.

• Use clean water and clean aggregates only.
• Store in a cool and dry place.
• Protect from direct sunlight and moisture.
• Keep bags tightly sealed until use.

As per health & safety rules. Use safety accessories required to be used, would include:
a) Safety gloves
b) Safety goggles
c) Dust & nose mask
d) Helmet
In case of accidental contact with eyes of either dry or wet mix, immediately wash your hands; make sure your hands are clean and then wash your eyes with clean water and if required, seek medical assistance.
Avoid breathing dust.

All results and facts stated in this document are applicable under normal conditions and when products are used according to the provided instructions and guidelines. KENUNIV no responsibility for deviations or dissatisfaction due to environmental, climatic, temperature, or humidity factors, or due to consumer usage methods.

Descriptionof KENUNIV-WF

KENUNIV Tile Fixer a premixed, ready-to-use, grey silica-based (SiO2 98%+) cement adhesive compound designed for all types of wall tile applications, both internal and external.

This high-quality, single-component, water-resistant bonding mixture ensures consistent quality and is composed of pure fine mesh silica, cement, and adhesive compounds, ideal for civil construction sites.

• IS:15477T3 Table 1 Cl 5.1 & 5.2
• EN-12004 C2TES1

KENUNIV Wall Tile Fixer suitable for various applications, including:

• Wall ceramic tiles
• Vitrified tiles
• Natural stones
• Marble, granite, terracotta
• Large format tiles
• Porcelain
Ideal for cladding tilein internal and external areas, dry and wet areas, and both domestic and commercial applications.

• High Compressive Strength:Wall Tile Fixer specimen exhibit-achieves very high compressive strength.
• Easy Application: The premixed material requires only the addition of water on-site, simplifying and speeding up the tile-fixing process.
• Self-Curing Properties: Due to the silica base, the bonding agent has a low temperature and fast curing time, facilitating hassle-free application with minimal labor.
• Better Coverage: Provides efficient and effective coverage for various applications.
• Eco-Friendly: Contains no fly ash or slag.

Dry Bulk density	1300-1450 Kg/m3
Water powder ratio	20% to 22% by weight
Fresh Wet Density	1700-1800 Kg/m3
Open time (IS 15477:2019)	Approx. 20 minutes
Adjustability (IS 15477:2019)	Approx. 20 minutes
Compressive strength	> 12.1 to 14.1 Mpa @ 7 Days > 23.8 to 28.0 Mpa @ 28 Days
As per IS 15477:2019 For Type - 3 Tensile adhesion strength Shear adhesion strength Dry Condition	≥ 1.5 N/mm2 ≥ 1.5 N/mm2
As per EN 12004	Class -2 ,C2TES1
Application temperature (substrates & materials)	5°C to 35°C
Adhesive thickness of Layer	3 mm – 12 mm
Pot life	2.0 Hr @ 30 C
Settings/ trafficable time	24 hours

Size of Bag	Thickness of Plaster	Area of Coverage
20 Kg	3mm	65 to 70 Sq. Feet
20 Kg	5mm	38 to 40 Sq. Feet
20 Kg	6mm	30 to 33 Sq. Feet
20 Kg	8mm	23 to 25 Sq.Feet

It has a shelf life of 12 months from the date of manufacture. Store at cool and dry place.

20 Kg Bag Size

• Avoid direct application to gypsum plaster or boards, fiber cement boards, drywall partitions, plywood, chipboard, particleboard, decorative laminates, resilient flooring, metal, plastic, deformable surfaces, or surfaces subject to vibrations.
• Not suitable for fixing artificial, nano, engineered stone, composites, or metal tiles.

• Prepare the surfaces before the KENUNIV Wall Tile Fixer application by removing oil, bond inhibiting agents, dirt, dust and laitance The cleaning can be carried out with suitable methods like by using wire brush, water jetting,mopping, etc.
• KENUNIV Wall Tile Fixer requires 20% ofNormal Water by weight of material (Example- 20kg Bag requires 4.0 to 4.5 Litre ofWater) Mix KENUNIV Wall Tile Fixer to the measured quantity of water using mechanical stirring for 2-3 minutes to ensure a consistentlump free mixture
• Application- KENUNIV Wall Tile Fixeron both surfaces using 6 mm notch or mortar trowels spatula. Place the tiles on the surface then move it in perpendicular direction to notches. Tap the tiles gently using wooden block or rubber mallet. Remove the excess adhesive using damp cloth / sponge.
• Due to Silica Base compound the temperature of bonding agent low & it gives fast curing, Its Required time for Settlement is 24Hr.
• As per health & safety rules. Use safety accessories required to be used, would include: a) Safety gloves b) Safety goggles c) Dust & nose mask d) Helmet
• In case of accidental contact with eyes of either dry or wet mix, immediately wash your hands; make sure your hands are clean and then wash your eyes with clean water and if required, seek medical assistance.

All results and facts stated in this document are applicable under normal conditions and when products are used according to the provided instructions and guidelines. KENUNIVno responsibility for deviations or dissatisfaction due to environmental, climatic, temperature, or humidity factors, or due to consumer usage methods.

Description of KENUNIV – SF

KENUNIV Stone Fixeris a pre-mixed, ready-to-use adhesive compound with high-quality silica (SiO2 98%+), Cement Grey / white, and adhesive components.

Designed for both internal and external applications, it ensures consistent quality for all types of natural stone fixing. KENUNIV Stone Fixeris a single-component, water-resistant bonding mixture ideal for civil construction projects.

• IS:15477T4Table1 Cl 5.1 & 5.2
• EN-12004 C2TES2

KENUNIV Stone Fixercan be used for various types of

• Ceramic tiles
• Vitrified tiles
• Natural stones
• Marble
• Granite
• Terracotta
• Large format tile
• Porcelain

in accordance with IS 13712: 2006. Suitable for flooring and walls in both internal and external areas, it is effective in dry and wet conditions for domestic and commercial applications.

• High Compressive Strength:Stone Fixerspecimen exhibit-achieves very high compressive strength.
• Easy Application: Pre-mixed material requires only the addition of water on-site, simplifying and speeding up the stone fixing process.
• Self-Curing Properties: The silica-based compound ensures low temperature of the bonding agent and fast curing, allowing hassle-free application with minimal labor.
• Better Coverage: Provides efficient and effective coverage for various applications.
• Eco-Friendly: Contains no fly ash or slag.

Dry Bulk Density	1300-1450 Kg/m3
Water powder ratio	20% to 22% by weight
Fresh Wet Density	1700-1800 Kg/m3
Open time (IS 15477:2019)	Approx. 20 minutes
Adjustability (IS 15477:2019)	Approx. 20 minutes
Compressive strength	> 12.1 to 14.1 Mpa @ 7 Days > 34.1 to 36.9 Mpa @ 28 Days
As per IS 15477:2019 For Type – 4 Tensile adhesion strength Shear adhesion strength Dry Condition	≥ 1.75 N/mm2 ≥ 1.60 N/mm2
As per EN 12004	Class -2 ,C2TES2
Application temperature (substrates & materials)	5°C to 35°C
Adhesive thickness of Layer	3 mm – 12 mm
Pot life	2.0 Hr @ 30 C
Settings/ trafficable time	24 hours

Size of Bag	Thickness of Plaster	Area of Coverage
20 Kg	3mm	65 to 70 Sq. Feet
20 Kg	5mm	38 to 40 Sq. Feet
20 Kg	6mm	30 to 33 Sq. Feet
20 Kg	8mm	23 to 25 Sq.Feet

It has a shelf life of 12 months from the date of manufacture. Store at cool and dry place.

20 Kg Bag Size

• Avoid direct application to gypsum plaster or boards, fiber cement boards, drywall partitions, plywood, chipboard, particleboard, decorative laminates, resilient flooring, metal, plastic, deformable surfaces, or surfaces subject to vibrations.
• Not suitable for fixing artificial, nano, engineered stone, composites, or metal tiles.

• Surface Preparation Prepare the surfaces before the KENUNIV Stone Fixerapplication by removing oil, bond inhibiting agents, dirt, dust and laitance The cleaning can be carried out with suitable methods like by using wire brush, water jetting,mopping, etc.
• KENUNIV Stone Fixerrequires 20% ofNormal Water by weight of material (Example-20kg Bag requires 4.0 to 4.5 Litre ofWater)Mix KENUNIV Stone Fixerto the measured quantity of water using mechanical stirring for 2-3 minutes to ensure a consistentlump free mixture
• Application- KENUNIV Stone Fixeron both surfaces using 6 mm notch or mortar trowels spatula. Place the stone / marble on the surface then move it in perpendicular direction to notches.Tap the stone / marble gently using wooden block or rubber mallet. Remove the excess adhesive using damp cloth / sponge.
• Due to Silica Base compound the temperature of bonding agent low & it gives fast curing, Its Required time for Settlement is 24 Hr.
• Precaution - Safety As per health & safety rules. Use safety accessories required to be used, would include: a) Safety gloves b) Safety goggles c) Dust & nose mask d) Helmet
• In case of accidental contact with eyes of either dry or wet mix, immediately wash your hands; make sure your hands are clean and then wash your eyes with clean water and if required, seek medical assistance. Avoid breathing dust

All results and facts stated in this document are applicable under normal conditions and when products are used according to the provided instructions and guidelinesKENUNIV assume no responsibility for deviations or dissatisfaction due to environmental, climatic, temperature, or humidity factors, or due to consumer usage methods.

Description of KENUNIV –SF& SF-White

KENUNIV Stone Fixeris a pre-mixed, ready-to-use adhesive compound with high-quality silica (SiO2 98%+), Cement Grey / white, and adhesive components.

Designed for both internal and external applications, it ensures consistent quality for all types of natural stone fixing. KENUNIV Stone Fixeris a single-component, water-resistant bonding mixture ideal for civil construction projects.

• IS:15477T4Table1 Cl 5.1 & 5.2
• EN-12004 C2TES2

KENUNIV Stone Fixercan be used for various types of

• Ceramic tiles
• Vitrified tiles
• Natural stones
• Marble
• Granite
• Terracotta
• Large format tile
• Porcelain

in accordance with IS 13712: 2006. Suitable for flooring and walls in both internal and external areas, it is effective in dry and wet conditions for domestic and commercial applications.

• High Compressive Strength:Stone Fixerspecimen exhibit-achieves very high compressive strength.
• Easy Application: Pre-mixed material requires only the addition of water on-site, simplifying and speeding up the stone fixing process.
• Self-Curing Properties: The silica-based compound ensures low temperature of the bonding agent and fast curing, allowing hassle-free application with minimal labor.
• Better Coverage: Provides efficient and effective coverage for various applications.
• Eco-Friendly: Contains no fly ash or slag.

Dry Bulk Density	1300-1450 Kg/m3
Water powder ratio	20% to 22% by weight
Fresh Wet Density	1700-1800 Kg/m3
Open time (IS 15477:2019)	Approx. 20 minutes
Adjustability (IS 15477:2019)	Approx. 20 minutes
Compressive strength	> 12.1 to 14.1 Mpa @ 7 Days > 34.1 to 36.9 Mpa @ 28 Days
As per IS 15477:2019 For Type – 4 Tensile adhesion strength Shear adhesion strength Dry Condition	≥ 1.75 N/mm2 ≥ 1.60 N/mm2
As per EN 12004	Class -2 ,C2TES2
Application temperature (substrates & materials)	5°C to 35°C
Adhesive thickness of Layer	3 mm – 12 mm
Pot life	2.0 Hr @ 30 C
Settings/ trafficable time	24 hours

Size of Bag	Thickness of Plaster	Area of Coverage
20 Kg	3mm	65 to 70 Sq. Feet
20 Kg	5mm	38 to 40 Sq. Feet
20 Kg	6mm	30 to 33 Sq. Feet
20 Kg	8mm	23 to 25 Sq.Feet

It has a shelf life of 12 months from the date of manufacture. Store at cool and dry place.

20 Kg Bag Size

• Avoid direct application to gypsum plaster or boards, fiber cement boards, drywall partitions, plywood, chipboard, particleboard, decorative laminates, resilient flooring, metal, plastic, deformable surfaces, or surfaces subject to vibrations.
• Not suitable for fixing artificial, nano, engineered stone, composites, or metal tiles.

• Surface Preparation Prepare the surfaces before the KENUNIV Stone Fixerapplication by removing oil, bond inhibiting agents, dirt, dust and laitance The cleaning can be carried out with suitable methods like by using wire brush, water jetting,mopping, etc.
• KENUNIV Stone Fixerrequires 20% ofNormal Water by weight of material (Example-20kg Bag requires 4.0 to 4.5 Litre ofWater)Mix KENUNIV Stone Fixerto the measured quantity of water using mechanical stirring for 2-3 minutes to ensure a consistentlump free mixture
• Application- KENUNIV Stone Fixeron both surfaces using 6 mm notch or mortar trowels spatula. Place the stone / marble on the surface then move it in perpendicular direction to notches.Tap the stone / marble gently using wooden block or rubber mallet. Remove the excess adhesive using damp cloth / sponge.
• Due to Silica Base compound the temperature of bonding agent low & it gives fast curing, Its Required time for Settlement is 24 Hr.
• Precaution - Safety As per health & safety rules. Use safety accessories required to be used, would include: a) Safety gloves b) Safety goggles c) Dust & nose mask d) Helmet
• In case of accidental contact with eyes of either dry or wet mix, immediately wash your hands; make sure your hands are clean and then wash your eyes with clean water and if required, seek medical assistance. Avoid breathing dust

All results and facts stated in this document are applicable under normal conditions and when products are used according to the provided instructions and guidelinesKENUNIV assume no responsibility for deviations or dissatisfaction due to environmental, climatic, temperature, or humidity factors, or due to consumer usage methods.
